Exploring 3D in Qt: Qt 3D, Qt Quick 3D, 3rd-party libraries

Welcome to this comprehensive guide on 3D graphics in Qt. In this article, we’ll explore three main ways you can bring 3D content to life in your Qt applications:



• Qt 3D
• Qt Quick 3D
• and low-level rendering with external libraries

We’ll go through the strengths and limitations of each approach and help you choose the best fit for your next project. While we’ll compare all the options, we believe Qt Quick 3D is the most compelling choice — that’s why we’ll focus on it in the example and mini tutorial that follow. You’ll see Qt Quick 3D in action and get a head start on building your own 3D applications.

If you’re diving into Qt development and need support or guidance, don’t hesitate to contact us. Whether you need help integrating 3D into your Qt applications or navigating through the Qt ecosystem, we’re here to assist!



Qt 3D – the Entity-Component Workhorse (deprecated)

Qt 3D offers an entity–component system (ECS) that lets you assemble a scene from generic QEntity objects to which rendering, input, physics or animation components are attached. A flexible frame-graph describes how every frame is rendered, so you can build deferred renderers, shadow passes, multi-viewport setups and more without touching GPU APIs.



Strengths



• Fine-grained control over the whole rendering pipeline via frame-graphs.
• Pure C++ and QML APIs; LGPL-3/GPL-2 licensing allows closed-source use under LGPL terms.
• Well suited to simulation, CAD/CAE or scientific visualisation where custom passes or compute shaders are essential.



Weak spots



• Performance overhead from its multi-threaded aspect system can be large on embedded GPUs or high-resolution desktops.
• Lacks the designer tooling and ready-made materials available in Qt Quick 3D.
• !!! Officially deprecated: Qt 3D will not ship in Qt 6.8 and later releases, though the code stays in the repo for those who still build it themselves




When to keep using it



1. You already have a substantial Qt 3D codebase and migrating would exceed your budget.
2. You rely on advanced frame-graph tricks or geometry/compute shaders that Qt Quick 3D cannot yet expose.
3. LGPL licensing without going commercial is mandatory.

If you’re working on a Qt 3D-based project and considering a migration — which we generally recommend — feel free to reach out to us. We can help you plan and execute the transition efficiently.



Qt Quick 3D – the Modern High-Level 3D Layer

Qt Quick 3D extends the Qt Quick scene graph with spatial nodes, so 2D and 3D items share the same renderer and timing model. You describe scenes in QML (Model, Camera, Light, Material, etc.) and get designer-ready tooling in Qt Design Studio.



Strengths



• Single scene graph eliminates synchronisation glitches between 2D and 3D layers.
• High-level features: physically-based materials, particle systems, baked global illumination, physics (Qt Quick 3D Physics), post-processing and texture-based sky boxes.
• Optimised import pipeline (Balsam) and asset conditioning tips such as mandatory triangulation.
• Rapid iteration: hot-reload QML, live-shader editing, profiler integration.
• Strong roadmap: continuous surveys and feature drops confirm active investment.



Weak spots



• Currently GPL-3/commercial only; closed-source users need a commercial Qt licence.
• Restricted feature set when forced to run on GLES 2.0 class hardware.
• Less flexible than Qt 3D for exotic render-passes; no built-in compute-shader path yet.



Best-fit scenarios



• UI-heavy applications that sprinkle 3D models, dashboards or HUDs among 2D Quick items.
• Infotainment, medical devices, architectural visualisation where designer workflows are critical.
• Projects starting fresh in Qt 6 looking for future-proof support and tooling.

To see how powerful and intuitive Qt Quick 3D can be, check out our demo of Brain Viewer – a 3D model of the human brain created using Qt Quick 3D. This example showcases the potential of Qt Quick 3D for medical and educational applications, and how it can be used to visualize complex 3D data in an interactive and user-friendly way.



Low-Level Rendering with OpenGL, Vulkan, Metal or Direct3D

Qt exposes the GPU through QOpenGLWidget (legacy) and the modern QRhi abstraction (QRhiWidget, QRhi::create()). This route leaves all rendering decisions to your engine.



Strengths



• Maximum performance and API reach: geometry/compute shaders, ray tracing, mesh shaders, bindless resources, vendor extensions.
• Freedom to share device contexts with existing engines (e.g., Direct3D via EGL or Metal via MoltenVK).
• No licensing constraints beyond the underlying Qt build (LGPL/GPL/commercial).



Pitfalls



• Own the whole graphics lifecycle: swap-chain, synchronisation, threading, asset loaders.
• Integrating with Qt Quick means FBO blits or texture sharing; latency and tearing issues are common.
• Maintenance cost is high; GPU APIs evolve quickly (example: QRhiWidget-Vulkan hang on macOS).
• You must profile and tune rendering manually (overdraw, batching, frame pacing).



When it makes sense



• You already have a proprietary engine/library you need to embed in a Qt GUI.
• You require bleeding-edge GPU features not abstracted by Qt yet.
• You must hit platforms where Quick 3D is limited (e.g., GLES 2) but still need advanced effects.



Comparison of 3D Rendering Approaches in Qt

Criterion	Qt Quick 3D	Qt 3D	Low-Level OpenGL/Vulkan
API style	Declarative QML, small C++ helpers	ECS C++ & QML	Raw C++ shaders & command buffers
Renderer	Integrated with Quick scene graph	Separate aspect/thread pool	Your own or third-party
Performance	Optimised for UI, good on desktop; limited on GLES 2	Acceptable but heavier; threading cost on some GPUs	Max – entirely on you
Custom passes	Limited (custom materials & post-FX via shader code — or import from external tools like Blender)	Full frame-graph control	Unlimited
Tooling	Qt Design Studio, Balsam importer	Minimal; manual asset prep	External (RenderDoc, Nsight, etc.)
Licensing (open source)	GPL-3	LGPL-3	Depends on Qt edition you link against
Status / roadmap	Actively developed; new features every minor	Deprecated, removed from 6.8	Core Qt APIs stable; you own future work
Ideal use cases	Dashboards, HMIs, mixed 2D/3D UIs	Simulation, CAD, custom renderers that lean on ECS	Game engines, scientific vis, legacy engine embedding

The Qt framework now clearly positions Qt Quick 3D as its forward-looking 3D layer, with Qt 3D entering maintenance mode and low-level OpenGL/Vulkan reserved for niche, maximum-control scenarios. Evaluate your functional needs, licensing model and team expertise against the table above to pick the most sustainable path for your next 3D-enabled application.



Porting from Qt 3D to Qt Quick 3D

If you’re currently using Qt 3D and considering migrating to Qt Quick 3D, the transition can be relatively smooth, especially if your application relies on standard 3D elements such as models, cameras, and lights. While Qt Quick 3D offers a more modern and high-level API, it doesn’t have the same low-level control as Qt 3D. This means that some custom rendering techniques or complex frame-graph setups may need to be reworked. However, the flexibility and the integration with the Qt Quick scene graph make it an appealing choice for new projects. If you’re familiar with QML, you’ll likely find the transition to Qt Quick 3D easy, especially with the many designer tools available.

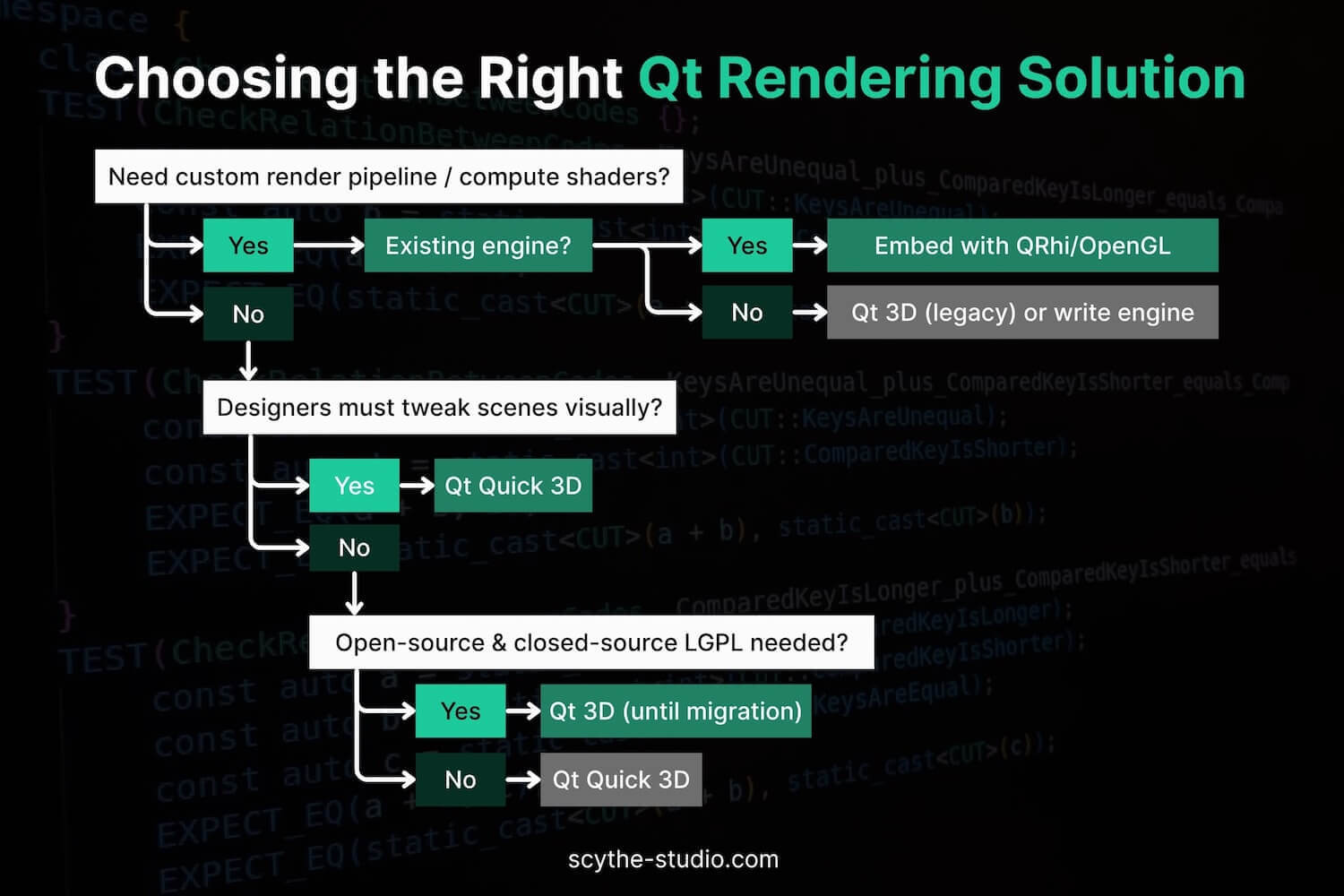

Choosing the Right Qt Rendering Solution




Qt Quick 3D: A Personal Journey

During work on many different apps, I always “thought” only in 2 dimensions and it turned out to be kind of a trap. When you think about it there are plenty of cases when you need one extra dimension in your app. Let’s take the software for a 3D printer as an example. How can rendering a preview of a model to print be implemented only in two dimensions? This is why I took off in search of a solution that will allow me to create 3D elements in my applications using already known technologies such as QML. In ScytheStudio we can easily deepen our knowledge in the area that interests us, what is more, we gain not only time for development but also resources.

Fortunately, there is such thing as Qt Quick 3D, which provides us with an easy high-level API for creating elements in 3D using familiar QML language. It also covers areas like animations, cameras, lightning or materials. The goal of QtQuick 3D is to provide tools for programmers without in-depth knowledge of complex computer graphics.

A solution that doesn’t flood you with complicated mathematical formulas right at the start and fits my technology stack perfectly caught my attention right from the bat.



Let’s start our journey!

I eagerly started by going through the documentation and watching video tutorials. After a short introduction to the world of Qt Quick 3D, I decided to start a simple project. The first thing I had to do was downloading the Qt3D module through the maintenance tool, as it is not included in the core module. After that, you just need to add an import statement in the QML file and voilà, you can start using Qt Quick 3D!

Below you can see my first program created using Qt Quick 3D. The lack of fluidity is due to the necessary compression of the GIF file.



import QtQuick 2.15
import QtQuick.Window 2.15
import QtQuick.Controls 2.15
import QtQuick3D 1.15
import QtQuick3D.Materials 1.15
import QtQuick3D.Helpers 1.15



Window {
  id: root

  width: 640
  height: 960
  visible: true
  title: qsTr("QML 3D")

  View3D {
    id: view
    anchors.fill: parent

    environment: SceneEnvironment {
      clearColor: "#112220"
      backgroundMode: SceneEnvironment.Color
    }

    Node {
      id: scene

      PerspectiveCamera {
        id: camera
        z: 300
      }

      DirectionalLight {
        z: 400
        brightness: 100
      }

      Model {
        source: "#Cube"

        materials: DefaultMaterial {
          diffuseColor: "green"
        }

        PropertyAnimation on eulerRotation.x {
          loops: Animation.Infinite
          duration: 5000
          to: 360
          from: 0
        }

        PropertyAnimation on eulerRotation.y {
          loops: Animation.Infinite
          duration: 5000
          to: 360
          from: 0
        }
      }
    }
  }
}

It may not look spectacular, but for 30 minutes of work, I’m proud of the results 😉

At the beginning of the project, you can see the initialization of a standard Window item. Next in the hierarchy is the View3D object. This is, so to speak, the root object for all 3D elements. I replaced the default environment attribute with a custom SceneEnviorment, with a custom background colour.

Next, you can see an object of the Node type, i.e. a class from which all Qt Quick 3D elements derive. In its body, I placed 3 elements: PerspectiveCamera, DirectionalLight and Model. Let’s analyse them one by one:

PerspectiveCamera provides us with a “view” of the entire scene. It is an eye through which we observe the scene.

DirectionalLight illuminates our whole scene. It is important not to forget about this element because without light most objects will be black (humans perceive colours because the light that bounces off materials is making us see colours).

Model is a physical object that we create. In this example, I used the built-in cube object and the default material which I changed to green. In order to make the cube move, I added two animations that change the rotation of the cube along the X and Y-axis.



Blender + Qt Quick 3D = Great Combo!

As we covered the basics, it’s time for something more difficult. Reading the documentation I found out that Qt Quick 3D supports using models created in applications like Blender, Maya or 3ds max. To import such a model, we need to convert them to QML code first. You can check our blog post about writing clean QML code. To do that we will use the built-in Balsam Asset Import Tool (It is located in the path: Qt/Tools/QtDesignStudio-XXX/qt5_design_studio_reduced_version where XXX is your actual QtDesignStudio version code). To demonstrate how this works, I created a simple “house” model in Blender.

Blender is a free solution with which anyone can become an architect



As we now have a model we can use the previously mentioned Balsam. After running it we get a .qml file that is able to be used in our program. A command for running it looks as follows:



balsam [options] source_file_name

Our “house” after conversion to QML



Time for a challenge!

I decided it was time to gather all the knowledge and create something more interesting.

The first thing was to add a sphere object to imitate the sun. To do this I used a Model object with source set to #Sphere and yellow colour. Inside it, I added the PointLight item which was responsible for the sun rays.

Next, I added a side menu allowing me to rotate the “house” on all axes, move the sun model, change the strength of its light, and two switches allowing me to turn off the scene light and the sun.

In order to add more interactivity to the application, I used the WasdController allowing me to move around the scene using the keys on my keyboard.

Home, sweet home



Summary and my thoughts

I must admit I was very positively surprised by Qt Quick 3D. As a person without any experience in 3D graphics, I was able to understand its mechanics and use it for my needs. The extensive documentation was helpful here, including examples and sample codes.

Moreover, the set-up itself was straightforward. All you had to do was download the appropriate library using the Qt maintenance tool and use it in your project. Everything you need in one place. There was no need to reconfigure the whole project or complicated attaching of files.

The thing that captivated me most was the simplicity. The high level of abstraction makes it easy to combine 2D interface elements with 3D objects without having to change my way of thinking.

Of course, the examples presented in this article might not be very ambitious, but they are simple examples that allow feeling satisfied. I also encourage you to try your hand with Qt Quick 3D package. You will be surprised how easy and fun it is.
